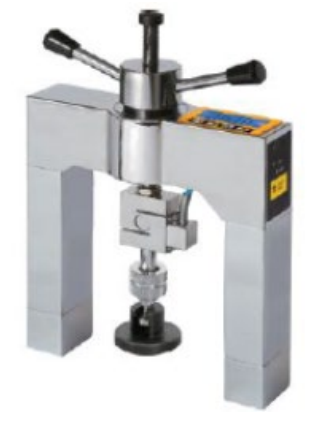

Lightweight alloy body with built-in micro-hydraulic system;
Equipped with HC-L3 embedded digital pressure gauge;
Chinese setting menu, data can be recorded, queried and deleted;
Numerical 10-segment broken line correction to improve the accuracy of the instrument;
Ultra-low power consumption design, automatic shutdown for 6 hours without operation, continuous working time can exceed 200 hours;
Two measurement modes of strength and force.

T/CECS 146-2022 Technical specification for strengthening concrete structures with carbon fiber reinforced composite materials
GB 50550-2010 Code for construction quality acceptance of building structure strengthening works

Display mode: force value, intensity adjustable
Instrument structure: integrated
Measuring range: 0～10.00kN/0～5MPa
Resolution: 0.001kN
LCD lighting: Yes
Peak Hold: Yes
Numerical correction: 10-segment polyline numerical correction to improve accuracy
Data storage: 200 pieces
Power supply mode: high-capacity lithium battery
Automatic shutdown: Yes
Hydraulic cylinder stroke: 65mm
Body Material: Light Alloy
Main body weight: 2.8kg
